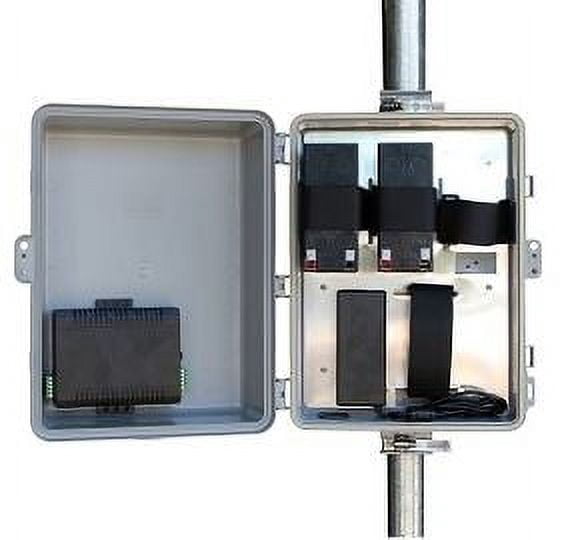

Tycon Power Outdoor UPS, 12V 18Ah Battery, 48V POE Output (Polycarbonate)

The UPS Pro series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. This uninterruptible power supply (UPS) enclosure is powered over a CAT5 network cable via Power Over Ethernet (POE) using a POE Supply/Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas. Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the POE input and/or solar power. The controller has a secondary wire terminal output which equals the battery voltage for connecting multiple pieces of equipment to the battery power, in addition to the POE output. There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Most models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the POE power supply.Multiple configurations are available for 12V or 24V systems with various battery storage capacities and POE output voltages. A typical 250mW wireless access point with average power consumption of 3.5W will run 26 hours on a 9AH battery at room temperature or 17 hours at -20 deg C. Use with Wireless Base Stations, Clients ,Surveillance Cameras Wireless Bridge and Repeaters Remote Sensors.

• • Outdoor UPS battery backup with 12V 18Ah battery (216Wh), and 48VDC POE output
• • 12V 8A PWM PoE Powered Charge Controller with Load Controlled 48V 30W Passive PoE out + 12V 1.5A Aux
• • Includes 120/240VAC 24VDC 90W Passive PoE Inserter
• • 2-4" Pole/Wall Mount Weatherpoof Lockable UV Resistant Polycarbonate Enclosure with Gasketed Hinged
